Electrostivuitor noua Dragon Machinery CPD25

2.5T battery fork lift, 2.5T electric fork lift, 2.5 ton capacity battery fork lift truck, 2.5 ton capacity electric fork lift truck, 2.5T counterbalanced battery forklift, 2.5T counterbalanced electric forklift, 2.5T counterbalance battery forklift, 2.5T counterbalance electric forklift, 2.5T battery forklift, 2.5T electric forklift, 2.5T electric forklift truck, 2.5 ton battery forklift, 2.5T capacity battery forklift, 2.5T capacity electric forklift, 2.5T battery fork lift truck, 2.5T battery powered forklift, 2.5T battery operated forklift, counterbalanced battery forklift capacity 2500kg, counterbalanced electric forklift capacity 2500kg, counterbalance battery forklift capacity 2500kg, counterbalance electric forklift capacity 2500kg, 2500kg capacity battery forklifts, 2500kg capacity battery forklifts

Features:
1. Double-motor and Dual-controller;
The double-motor and dual-controller electric power distribution system has two motors and two controllers that can realize independent control and operation respectively, which is highly reliable and easy to maintain.
2. Super Capacity Battery Array;
Equipped with super capacity battery array, this battery forklift truck can work for a longer time and is more durable.
3. Separately Excited DC Motor Control System;
The separately excited DC motor control system can achieve anti-slide function when parked on ramps, the function the traditional series excited motor control system cannot achieve. The current fluctuation of battery and motor will be reduced greatly, and the running speed cannot be changed with the loads.
4. Hydraulic Dynamic Load Sensing Technique (HDLT);
Adopting the advanced hydraulic dynamic load sensing technique, the new type integrated load-sensing steering gear can achieve single pump shunt to make the whole hydraulic system of the forklift more efficient and energy saving.
5. Intelligent Protection System of the Electric Control
The electric controller is equipped with intelligent protection system, such as protection in improper sequence of operation, seat power-off protection, steering function keeping in service braking, and emergency braking under special circumstances, etc.

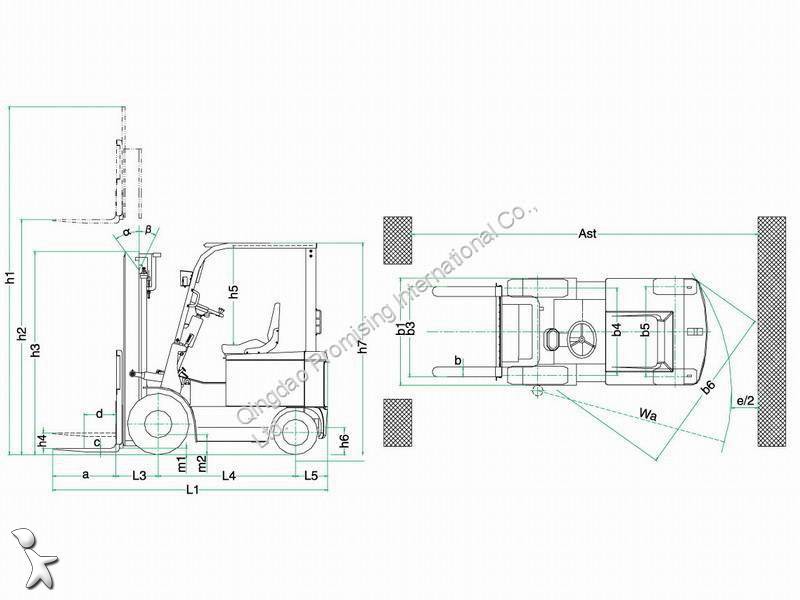

Technical Specifications:
Power Type: Electric (Battery)
Rated Capacity: 2500kg
Load Center: 500mm
Lifting Height: 3000mm
Mast Tilt Angel (F/R): 6/12Deg
Front Overhang: 465mm
Wheel Base: 1500mm
Wheel Tread (F/R): 970/950mm
Dead Weight: 4240kg
Free Lift Height: 140mm
Min. Turning Radius: 2100mm
Min. Ground Clearance - Under Mast: 110mm
Min. Ground Clearance - Wheelbase Center: 120 mm
Service Brake: Hydraulic-Foot Pedal
Parking Brake: Mechanical-Hand Lever
Lifting Speed (full-load): 260mm/s
Lowering Speed: Full-load < 600 mm/s, No-load > 300 mm/s
Travel Speed (no-load): 12km/h
Max. Gradeability (full-load): 10%
Max. Tractive Force (full-load/no-load): 9.8/8.0kN
Weight Distribution with load (F/R): 5900/840kg
Weight Distribution without Load (F/R): 1825/2415kg
Traction Motor Model: XQ-6.3-1T
Traction Motor Rated Power: 6.3kW/1200rpm
Working Motor Model: XQD-8.6-C
Working Motor Rated Power: 8.6kW/1550rpm
Controller Manufacturer: GE
Controller Type: MOSFET
Battery Voltage: 48V
Battery Capacity: 630Ah
Gearbox Transmission Type: Mechanical
Tyre Type: Pneumatic Tyres
Tyre Model – Front: 7.00-12-12PR
Tyre Model – Rear: 18x7-8-14PR
Fork Dimension: 40x125x1070mm
Overall Length (Without Fork): 2430mm
Overall Width: 1150mm
Overall Height Mast Extended: 4030mm
Overall Height Mast Lowered: 1995mm
Overall Height Overhead Guard: 2150mm


Optional Batter: 48V/580Ah

Note:
1. Technical specifications are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.
